低噪声放大器






雷达通信专用低噪声放大器

 产品特点

·噪声低增益高·驻波小,易于整机级联·宽温工作范围(-40℃~+85℃),满足军标要求·外形及联结形式灵活多样,可根据用户要求定制· 主要用于遥测、遥控、数据接收等高灵敏度场合


 具体指标(表一)

型号频率范围(GHz)噪声温度(系数)功率增益(dB)增益平坦度(dB)驻波比in/out

输出功P-1(dBm

工作电压Vcc
A10.011.0011.5~1.750°304550±0.51.25+10,13+12
A10.011.0021.7~1.950°304550±0.51.25+10,13+12
A10.011.0032.2~2.350,45°304550±0.51.25+10,13+12
A10.011.0043.6~4.250,45°304550±0.51.25+10,13+12
A10.011.0054.0~4.550°304550±0.51.25+12
A10.011.0065.9~6.460°304550±0.51.25+12
A10.011.0077.1~7.660°304550±0.51.25+10,13+12
A10.011.0088.0~9.00.9dB304050±0.51.25+10,13+12
A10.011.0099.7~10.31.0dB304050±0.51.25+10,13+12
A10.011.01010.5~11.71.0dB304050±0.51.25+10,13+12
A10.011.01111.7~12.51.0dB304050±0.51.25+12
A10.011.01214.5~15.51.5dB304050±0.51.25+10,13+12
A10.011.01316.0~18.01.8dB3040±0.51.25+10,13+12
A10.011.01418.0~20.01.8dB3040±0.51.25+10,13+12


由于篇幅有限,产品更多封装资料请来电咨询

 具体指标(表二)

型号频率范围f(MHz)增益Gp(dB)平坦度△Gp(dB)噪声系数Fn(dB)输出功率P1(dBm)驻波比电源Vcc

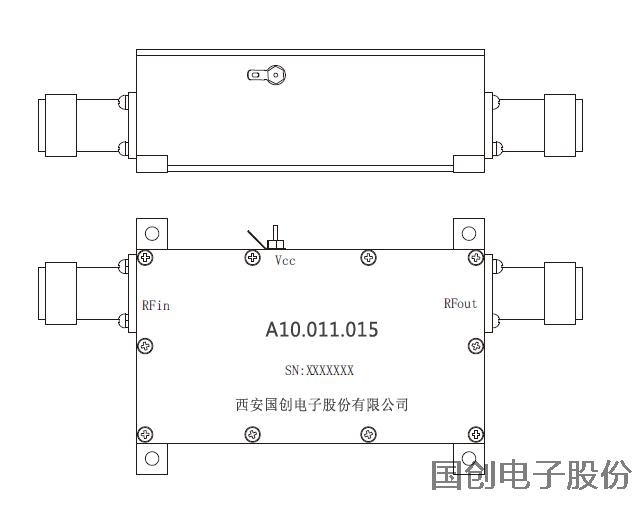

A10.011.0152200~2400≥25≤±0.5≤3≥151.3+9~+12
A10.011.016470~500≥30±0.5≤1.5≥8-+12
A10.011.017520~540≥30±0.5≤1.5≥8-+12
A10.011.018640~680≥30±0.5≤1.5≥8-+12
A10.011.019690~760≥30±0.5≤1.5≥8-+12
A10.011.0201268.5±1040±1±0.5≤1.301.5/2.0+5
A10.011.0211575±240±1±0.5≤1.301.5/2.0+5
A10.011.0221595.4±2140±1±0.5≤1.301.5/2.0+5
A10.011.0232491.7±440±1±0.5≤1.301.5/2.0+5
A10.011.0241300~1400≥35±0.5<1 .5-1.5+12
A10.011.0252180~2320≥40±0.2-≥201.3+12
A10.011.0262300~2700≥70±0.5<1 .5≥-81.5+5
A10.011.0273700~4100≥70±1<1 .5≥01.5+12
A10.011.0286050~6450≥38±0.3≤1.0-1.5+12
A10.011.029455≥26±1-≤1.8≥151.5+12
A10.011.0301230±10≥35±0.25≤1.6≥101.5+12
A10.011.0311230±2530~32±0.25≤1.6≥101.5+12
A10.011.0321268.5±1040±0.5±0.5≤1.5≥01.55±10%
A10.011.0331595.4±2140±0.5±0.5≤1.5≥01.55±10%
A10.011.0341460~166036±0.5±0.15≤1.3≥171.3+12
A10.011.0351560±12≥31±2-≤1.5101.3+12
A10.011.0364400~5100>3 0±0.5≤1.3-1.5:1+12
A10.011.0374400~5100≥30±1≤1.3-1.5+12
A10.011.0384400~5100≥39±1≤1.3-1.5+12
A10.011.0395250~5700≥30±0.5≤1.5≥101.5+12
A10.011.0405250~570039±0.3≤1.2≥101.25+12
A10.011.0415300~550026±1≤1≤1.5≥111.5+12
A10.011.0425700~6100≥30±0.5≤1.5-1.5+12
A10.011.0438000~9000≥50≤1≤1.5--+12
A10.011.0449600±6052±1±0.2≤2.0≥191.25+12
A10.011.04516000±5011±1≤±0.3≤2.2+6-+12
A10.011.0461207.14±10.2340±2±0.5≤1≥01.5/2.04.5~5.5
A10.011.0471268.52±10.2340±2±0.5≤1≥01.5/2.04.5~5.5
A10.011.0481268.52±10.2327±2±0.5≤1.3≥01.5/2.04.5~5.5
A10.011.0491227.6±12≥30±0.5≤1.5≥01.5/2.04.5~5.5
A10.011.0501561.098±2.04640±2±0.5≤1≥01.5/2.04.5~5.5
A10.011.0511575.42±2.04640±2±0.5≤1≥01.5/2.04.5~5.5
A10.011.0521575.42±2.04640±2±0.5≤1≥01.5/2.04.5~5.5
A10.011.0531595.4±2140±1±0.5≤1.3≥01.5/2.04.5~5.5
A10.011.0542491.75±5≥47±0.5≤1.5≥01.5/2.04.5~5.5
A10.011.0552491.75±528±2±0.3≤1.3≥01.5/2.04.5~5.5
A10.011.0562491.75±4.08≥55±0.5≤1.5≥01.5/2.0+5
A10.011.0571460~166032±0.5±0.2≤1.2-1.5+12
A10.011.0581850~215038±1±0.5≤1.2≥101.5+12
A10.011.0592305~250537±1±0.5≤1.5≥101.5+12
A10.011.0602600~305035±1≤0.5≤1.5≥101.5+15
A10.011.0615400~5600≥26≤0.5≤1.5≥101.5+12
A10.011.0621230±50-±0.5--18±0.51.8:1+12
A10.011.0631560±50-±0.5--18±0.51.8+12
A10.011.0642700~2900-±0.15-+6±0.31.5+15
A10.011.0655300~5500-±0.5-12±0.51.5+12
A10.011.0669360±25-±0.5-±0.5 -10±0.5 10±0.5  0-+12
A10.011.0679380±25-±0.5-10±0.5-+12
A10.011.068530±1530±2±0.5≤1≥01.5+12
A10.011.0692200~2300≥60±0.5≤0.7≥151.25+12
A10.011.0705640~5960≥35±0.5≤1.5--+12
A10.011.0714400~5000≥30±0.5≤1.0≥-141.5+5
A10.011.0721575±134±2≤1.5≤1.7≥0≤2+5
A10.011.0731268±1034±2≤1.5≤1.7≥0≤2+5
A10.011.0741575±134±2≤1.5≤1.7≥0≤2+5
A10.011.0751561±227±2≤1.5≤1.7≥0≤2+5
A10.011.0761268.52±10.2333±1≤1.5≤2.2≥0≤2+5
A10.011.0771567.5±9.533±1≤1.5≤2.2≥0≤2+5
A10.011.0781268.52±10.2333±2≤1.5≤1.7≥0≤2+5
A10.011.0791575.42±1.02340±2≤1.5≤1.7≥0≤2+5


 具体指标(表三)

型号频率范围FL-FU MHZ增益typ噪声系数输出功率驻波比电源电压
A10.012.001800-100019                    0.9 type     max 1.2131.8∶1+5
A10.012.002800-1000280.9 type     max 1.2+131.8∶1+12
A10.012.003800-1000350.9 type     max 1.2+131.8∶1+12
A10.012.0041000-120018                    0.9 type     max 1.2+131.8∶1+5
A10.012.0051000-1200280.9 type     max 1.2+131.8∶1+12
A10.012.0061000-1200350.9 type     max 1.2+131.8∶1+12
A10.012.0071200-140017                    0.9 type     max 1.2+131.8∶1+5
A10.012.0081200-1400280.9 type     max 1.2+131.8∶1+12
A10.012.0091200-1400350.9 type     max 1.2+131.8∶1+12
A10.012.0101400-160016                    0.9 type     max 1.2+131.8∶1+5
A10.012.0111400-1600280.9 type     max 1.2+131.8∶1+12
A10.012.0121400-1600350.9 type     max 1.2+131.8∶1+12
A10.012.0131600-180015                    0.9 type     max 1.2+131.8∶1+5
A10.012.0141600-1800280.9 type     max 1.2+131.8∶1+12
A10.012.0151600-1800350.9 type     max 1.2+131.8∶1+12
A10.012.01650-50020                    1 type     max 1.2+131.8∶1+12
A10.012.01750-100018                    1 type     max 1.3+131.8∶1+12
A10.012.0181-20020                    2.0            +131.8∶1+12
A10.012.0191-50019                    2.0            +131.8∶1+12
A10.012.02020-50020                    1.5            202∶1+9
A10.012.02120-50020                    1.5            202∶1+12
A10.012.022500-100019                    1.8            202∶1+9
A10.012.023500-100019                    1.8            202∶1+12
A10.012.0241000-150017                    2.0            202∶1+9
A10.012.0251000-150017                    2.0            202∶1+12
A10.012.0261000-150030                    1.5            192∶1+12
A10.012.0271500-200029                    1.5              192∶1+12
A10.012.0281700-200028                  1.5            192∶1+12
A10.012.0292200-250027                  1.5            192∶1+12

 具体指标(表四)

型号频率噪声系数增益平坦度驻波P-1工作电流
(GHz)(dB)(dB)(±dB)IN/OUT(mA)
A10.013.0010.03~0.21.220±0.22.0/1.810100
A10.013.0020.03~0.21.340±0.22.0/1.810260
A10.013.0030.03~0.21.460±0.22.0/1.810600
A10.013.0040.03~0.51.220±0.32.0/1.810100
A10.013.0050.03~0.51.340±0.32.0/1.810260
A10.013.0060.03~0.51.460±0.42.0/1.810600
A10.013.0070.1-0.30.8200.52.0/1.815120
A10.013.0080.1-0.31300.52.0/1.815200
A10.013.0090.3-0.50.8200.52.0/1.815120
A10.013.0100.3-0.51300.52.0/1.815200
A10.013.0110.3~0.71.220±0.32.0/1.81012
A10.013.0120.3~0.71.340±0.32.0/1.81012
A10.013.0130.3~0.71.460±0.42.0/1.810600
A10.013.0140.5-0.80.8200.52.0/1.81560
A10.013.0150.5-0.81300.52.0/1.815120
A10.013.0160.8-1.10.8200.52.0/1.81560
A10.013.0170.8-1.11300.52.0/1.815120
A10.013.0181.1-1.40.9200.52.0/1.81760
A10.013.0191.1-1.40.9300.52.0/1.817120
A10.013.0201.4-1.81200.52.0/1.81760
A10.013.0211.4-1.81300.52.0/1.817120
A10.013.0221.8-2.21.1200.52.0/1.81760
A10.013.0231.8-2.21.1300.52.0/1.817120
A10.013.0242.2-2.71.2200.52.0/1.81760
A10.013.0252.2-2.71.2300.52.0/1.817120
A10.013.0262.7-3.01.2200.52.0/1.81760
A10.013.0272.7-3.01.2300.52.0/1.817120
A10.013.0283.0-3.51.3200.52.0/1.81560
A10.013.0293.0-3.51.3300.52.0/1.815120
A10.013.0303.5-4.01.3200.52.0/1.81560
A10.013.0313.5-4.01.3300.52.0/1.815120
A10.013.0324.0-4.51.5300.52.0/1.815120
A10.013.0334.5-5.21.5200.52.0/1.81560
A10.013.0344.5-5.21.5300.52.0/1.815120
A10.013.0355.0-6.02200.51.5/1.71560
A10.013.0365.0-6.02300.51.5/1.715120
A10.013.0376.0-7.02.2200.51.5/1.71560
A10.013.0386.0-7.02.2300.51.5/1.715120
A10.013.0397.0-8.02.2200.51.5/1.71560
A10.013.0407.0-8.02.2300.51.5/1.715120
A10.013.0418.0-9.02.4200.51.5/1.71560
A10.013.0428.0-9.02.4300.51.5/1.715120
A10.013.0439.0-11.02.4200.51.5/1.71560
A10.013.0449.0-11.02.4300.51.5/1.715120
A10.013.04511.0-13.02.4200.51.5/1.71560
A10.013.04611.0-13.02.4300.51.5/1.715120
A10.013.04713.0-15.02.5200.51.5/1.71560
A10.013.04813.0-15.02.5300.51.5/1.715120
A10.013.04915.0-17.02.5200.51.5/1.71560
A10.013.05015.0-17.02.5300.51.5/1.715120
A10.013.05117.0-18.02.6200.51.5/1.71560
A10.013.05217.0-18.02.6300.51.5/1.715120

具体指标(表五)

型号频率范围 Freq Range(GHz)增益Gain(dB)平坦度Flatness(dBMax)噪声系数(dB)输出功率(Min)P1dB(dBm)驻波比(Max)电流5V(mA)Typ
MinMax
A10.014.0010.52-22832±1.50.6102:1130
A10.014.0021-22832±1.50.5132:1130
A10.014.0030.8-32428±1.50.5132:1110
A10.014.0042-43236±1.50.6102:1130
A10.014.0051-42630±1.80.9102:1130
A10.014.0061-62630±1.81.1102:1110
A10.014.0074-82832±1.81.1102:1110
A10.014.0082-82832±1.81.3102:1110
A10.014.0096-122332±1.51.4102:1100
A10.014.0108-122832±1.51.3102:1130
A10.014.0118-183540±2.52.2152:1230
A10.014.0126-181316±12.282:180
A10.014.0136-182832±21.8132:1180
A10.014.0142-182832±2.23.5122:1230
A10.014.0151-182832±2.23.7122.2:1230
A10.014.01618-262832±23.8122.2:1230
A10.014.01718-402832±3.54.2122.2:1230
A10.014.0180.4-0.620±0.50.8151.5:160
A10.014.0190.8-0.930±0.50.8151.5:180
A10.014.0201.2-1.428±0.51121.3:180
A10.014.0211.8-2.230±0.50.5101.5:1100
A10.014.0222.2-2.730±0.50.5101.5:1120
A10.014.0232.7-3.428±0.50.8121.3:1120
A10.014.0243.1-3.428±0.50.9121.3:1120
A10.014.0253.4-4.224±0.51101.5:180
A10.014.0265.3-5.925±0.51.1121.3:1120
A10.014.0276-720±0.50.891.5:180
A10.014.0286.7-7.725±0.50.8591.5:1100
A10.014.0298.5-9.630±0.51101.5:140
A10.014.0308.4-9.726±0.51.2121.3:1120
A10.014.0319-1020±0.51.2591.5:180
A10.014.0329.5-10.530±0.51.3101.5:180
A10.014.03310.7-12.728±11.35101.8:1120
A10.014.03414-1525±0.51.4101.8:1120
A10.014.03517.7-21.230±12.5101.8:1160
A10.014.03622-2622±12.7101.8:1120
