F1100E振荡器
产品特点
5.0V Operation
TTL Output

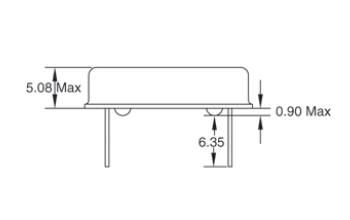

14-Pin DIP
注:指标表为部分本司标准产品及定制过的产品,更多频段产品,请来电咨询
具体指标(表一)
Part Number | 产品型号(Model Number) | Frequency Stability1 | 操作温度(°C) Operating Temperature)
| 频率范围(MHz) (Frequency Range ) |
049-Frequency-xxxxx | F1100E | ±100PPM(std) | 0 〜+70 | 1.000 〜100.000 |
343-Frequency-xxxxx | F1100ER | ±100PPM | -40 〜+85 | 1.000 〜100.000 |
060-Frequency-xxxxx | F1145E | ±50PPM | 0 〜+70 | 1.000 〜100.000 |
061-Frequency-xxxxx | F1145ER | ±50PPM | -40 〜+85 | 1.000 〜70.000 |
055-Frequency-xxxxx | F1144E | ±25PPM | 0 〜+70 | 1.000 〜100.000 |
465-Frequency-xxxxx | F1144ER | ±25PPM | -40 〜+85 | 1.000 〜70.000 |
• 电器特性(ELECTRICAL CHARACTERISTICS)
参数(PARAMETERS) | MAX (unless otherwise noted) |
频率范围(Frequency Range)(Fo) | 1.000 ~ 100.000 MHz |
存储温度范围(Storage Temperature Range) (Tstg) | -55°C ~+125°C |
电源电压(Supply Voltage )(Vdd) | 5.0V ±10% |
输入电流(Input Current)(I dd) |
|
1.000 ~ 8.000 MHz | 15mA |
8.000+~ 24.000 MHz | 30mA |
24.000+~ 70.000 MHz | 70mA |
70.000+~ 100.000 MHz | 80mA |
输出对称性(Output Symmetry )(1.4V Level) |
|
1.000 ~ 8.000 MHz | 45% ~ 55% |
8.000+~ 100.000 MHz | 40% ~ 60% |
上升时间(Rise Time) (0.5V ~ 2.4V) (TR) |
|
1.000 ~ 25.000 MHz | 10 nS |
25.000+~ 70.000 MHz | 5 nS |
70.000+~ 100.000 MHz | 4 nS |
下降时间(Fall Time )(2.4V ~ 0.5V) (TF) |
|
1.000 ~ 25.000 MHz | 10 nS |
25.000+~ 70.000 MHz | 5 nS |
70.000+~ 100.000 MHz | 4 nS |
输出电压(Output Voltage) |
|
1.000 ~ 25.000 MHz (Vol) | 0.4V |
25.000+~ 100.000 MHz | 0.5V |
1.000 ~ 100.000 MHz (VoH) | 2.4V Min |
输出电流(Output Current) (IOL) | 20mA Min |
(IOH) | -1.0mA Min |
输出负载(Output Load) | 10TTL |
启动时间(Start-up Time) (Ts) |
|
1.000 ~ 3.500 MHz | 20mS |
3.500+~ 4.000 MHz | 35mS |
4.000+~ 6.000 MHz | 30mS |
6.000+~ 20.000 MHz | 20mS |
20.000+~ 100.000 MHz | 15mS |
包括25°C的容差,工作温度范围,输入电压变化,负载变化,老化冲击和震动!
